Elbow Tube Adapters
Tube Fittings
316 stainless steel tube fitting reducing union elbows are widely used in instrumentation, liquid and gas tubing. They are suitable for food and medical equipment subject to special treatment.
Tube fitting reducing union elbows are designed to enable liquid, gas to change to 90-degree direction of flow. Reducer union elbows are used for connecting and disconnecting tube with different outside diameter to achieve the free flow in pipelines. Also used as the diversion port.
All parts of tube fittings are made of 316 stainless steel, constructed by body, back and front ferrules, and nut. provides various configurations of tube fittings for selection, including straights, 90-degree elbows, tees, bulkheads, nuts, ferrules, plugs, and caps. Nut threads are electroplated to prevent wear and improve smoothness for easier installation.
Features
- Double-ferrule metal to metal sealing, leak-free design.
- Nut threads are electroplated to reach wear resistance.
- 316 stainless steel material features resistance to heat, impact, and corrosion.
Technical Data
Working Pressure:
(1) 1/2 inch (12mm) Below: 210 kgf/cm²
(2) 3/4 inch (19mm) Above: 100 kgf/cm²
Suitable Tube O.D.: 1/8 ~ 1 inch ; 3 ~ 22mm
Thread: PT, NPT, M
Customized size is also acceptable.
Application
- Suitable for Instruments, Meters, Piping Engineering, Low Pressure and High Temperature Pneumatic Pipelines, Medical Equipment, Agricultural Appliances, Mechanical Parts Assembly, Food Industry, Chemical Plant, Petrochemical Plant, Water Treatment Industry.

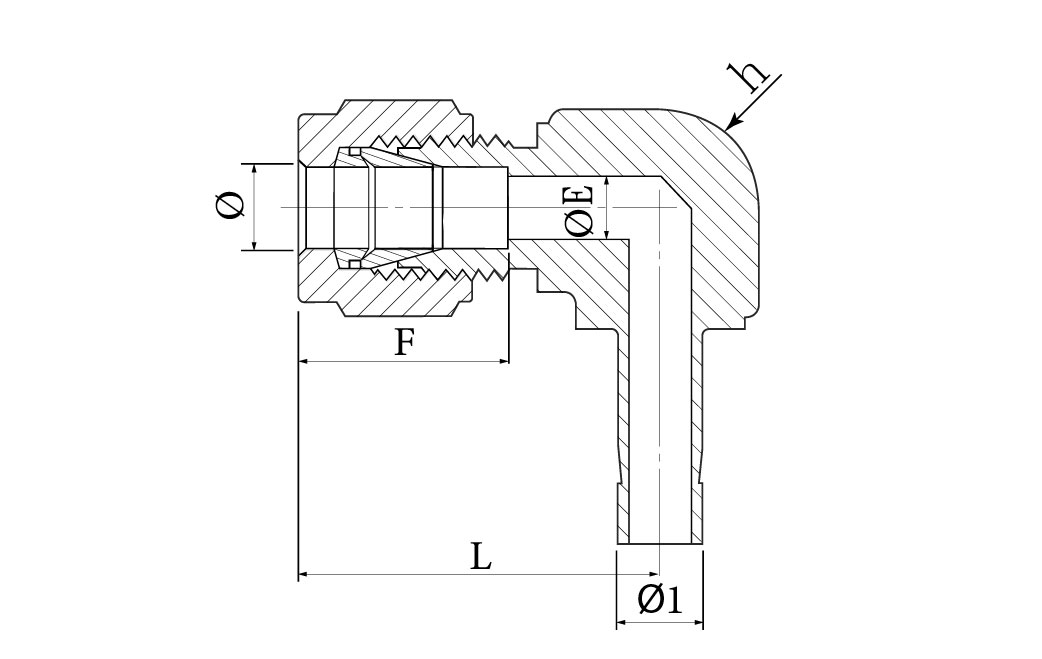

Dimension
Specification
Elbow Tube Adapters
| Part No | TUBE OD | Dimensions | h | |||
|---|---|---|---|---|---|---|
| Ø | Ø 1 | Ø E | F | L | ||
| EL02OD02ODT | 1/4" | 1/4" | 4.3 | 15.2 | 26.9 | 12.7 |
| EL03OD02ODT | 3/8" | 4.3 | 16.8 | 30.5 | 15.9 | |
| EL03OD03ODT | 3/8" | 3/8" | 6.9 | 16.8 | 30.5 | 15.9 |
| EL04OD03ODT | 1/2" | 6.9 | 22.9 | 36 | 20.6 | |
| EL04OD04ODT | 1/2" | 1/2" | 9.4 | 22.9 | 36 | 20.6 |
