Tube Fittings Male Adapters

Tube Fittings

316 stainless steel male adapter

316 Stainless Steel Male adapter is designed for use in tubing lines of automatic control such as instrumentation, air systems, chemistry, light industry, mechanics, airlines, and hydraulic power tubing lines of various industrial mechanics, mechanical equipment. The double-ferrule series is suitable for the fluid such as air, cutting oil, fuel oil, gasoline, hydraulic fluid, mineral oil, natural gas, steam, and water.


Features
  • metal to metal sealing, leak-free design.
  • Nut threads are electroplated to reach wear resistance.
  • 316 stainless steel material features resistance to heat, impact, and corrosion.
Technical Data
  • Thread: PT, NPT, M
  • Customized size is also acceptable.

Application
  • Suitable for Instruments, Meters, Piping Engineering, Low Pressure and High Temperature Pneumatic Pipelines, Medical Equipment, Agricultural Appliances, Mechanical Parts Assembly, Food Industry, Chemical Plant, Petrochemical Plant, Water Treatment Industry.

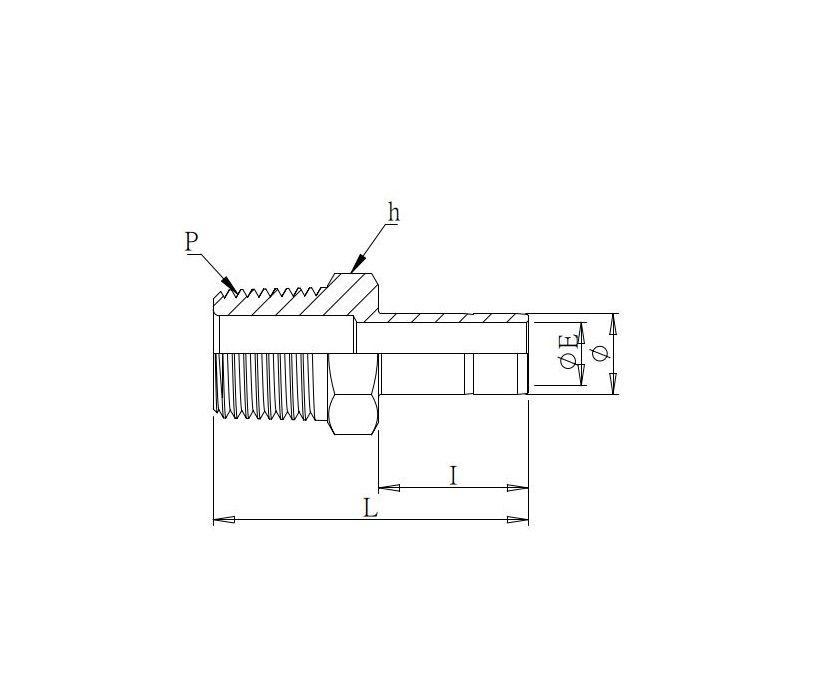

Dimension


Specification
Tube Fitting Male Adapter
Part No THREAD SIZE TUBE OD Dimensions h
P-PT or NPT Ø Ø E I L
ES02T02ODT 1/4” 1/4” 4.8 17 36 14
ES03T03ODT 3/8” 3/8” 7 19 39 17
ES04T04ODT 1/2” 1/2” 10 23.5 49.5 22
ES06T06ODT 3/4” 3/4” 15 26 55 27
ES08T08ODT 1” 1” 20 32 64 35
