Features
- Taper design to reach Leak-free and Crack resistance.
- Heat resistance, impact resistance, corrosive resistance, and high temperature resistance.
Technical Data
Working Temperature: 210 kgf/cm²
Suitable OD (30°): 1/4 ~ 2 Inch
Thread: UNF , OD
Application
- Suitable for Machine Tools, Agricultural and Heavy-Duty Machinery, Instrumentation, Connection Between Chemical Processing Systems and Hydraulic Fluid and Gas Processing.

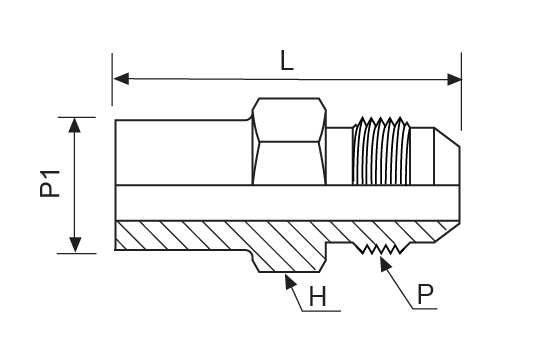

Dimension
Specification
Tube Fittings JIC 37° Flare Hydraulic Adapters
| Part No | THREAD SIZE | Dimensions | H | |
|---|---|---|---|---|
| P-UNF | P1-Tube OD | L | ||
| ES03H04ODT | 3/8" | 1/2" | 41.4 | 13/16" |
| ES04H04ODT | 1/2" | 1/2" | 45.2 | 15/16" |
| ES04H05ODT | 1/2" | 5/8" | 47.75 | 15/16" |
| ES04H06ODT | 1/2" | 3/4" | 52.3 | 1 - 1/8" |
| ES04H08ODT | 1/2" | 1" | 53.34 | 1 - 3/8" |
| ES06H06ODT | 3/4" | 3/4" | 58.42 | 1 - 3/8" |
| ES06H08ODT | 3/4" | 1" | 58.67 | 1 - 3/8" |
| ES08H08ODT | 1" | 1" | 63 | 1 - 3/8" |
| ES10H10ODT | 1 - 1/4" | 1 - 1/4" | 73.66 | 1 - 11/16" |
| ES10H12ODT | 1 - 1/4" | 1 - 1/2" | 76.7 | 2" |
| ES12H12ODT | 1 - 1/2" | 1 - 1/2" | 79.75 | 2" |
| ES16H16ODT | 2" | 2" | 95.758 | 2 - 5/8" |
