Hex Reducing Nipple
Pipe Fittings
Hexagonal Reducing Nipple
Pipe Fittings Hex Reducing Nipples are widely used for joining pipe in automotive, plumbing and piping industries. Hex Reducing Nipples connect different size of female threading at two ends. Hex Reducing Nipples are made from stainless steel bar stock and presents straight shape.
Full series includes straight, elbow, tee, barbed hose, bulkhead, reducer pipe fittings. Other fitting threads can be customized.
Features
- Leak Free Design.
- Fast and Easy Installation.
- Space-saving.
- Material: SUS304, SUS316, Corrosive resistance
Technical Data
- Working Pressure: 210 kgf/cm²
- Size: 1/8" ~ 2"
- Thread: PT, NPT

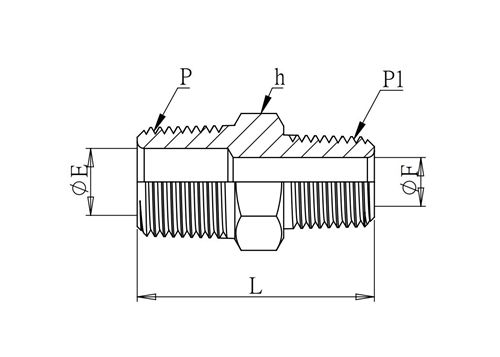

Dimension
Specification
Pipe Fittings Hex Reducing Nipple
| Part No | THREAD SIZE | Dimensions | H | |||
|---|---|---|---|---|---|---|
| P-PT | P1-PT | Ø E | Ø F | L | ||
| ES02T01T | 1/4" | 1/8" | 7 | 4.8 | 30 | 14 |
| ES03T01T | 3/8" | 1/8" | 7 | 4.8 | 31 | 17 |
| ES03T02T | 3/8" | 1/4" | 9.6 | 7 | 34 | 17 |
| ES04T01T | 1/2" | 1/8" | 12 | 4.8 | 36 | 22 |
| ES04T02T | 1/2" | 1/4" | 12 | 7 | 39 | 22 |
| ES04T03T | 1/2" | 3/8" | 12 | 9.6 | 40 | 22 |
| ES06T02T | 3/4" | 1/4" | 16 | 7 | 42 | 27 |
| ES06T03T | 3/4" | 3/8" | 16 | 9.6 | 43 | 27 |
| ES06T04T | 3/4" | 1/2" | 16 | 12 | 47 | 27 |
| ES08T02T | 1" | 1/4" | 22 | 7 | 45 | 35 |
| ES08T03T | 1" | 3/8" | 22 | 9.6 | 46 | 35 |
| ES08T04T | 1" | 1/2" | 22 | 12 | 50 | 35 |
| ES08T06T | 1" | 3/4" | 22 | 16 | 52 | 35 |
| ES10T04T | 1-1/4" | 1/2" | 28 | 12 | 53 | 43 |
| ES10T06T | 1-1/4" | 3/4" | 28 | 16 | 55 | 43 |
| ES10T08T | 1-1/4" | 1" | 28 | 22 | 57 | 43 |
| ES12T06T | 1-1/2" | 3/4" | 33 | 16 | 57 | 50 |
| ES12T08T | 1-1/2" | 1" | 33 | 22 | 59 | 50 |
| ES12T10T | 1-1/2" | 1-1/4" | 33 | 28 | 60 | 50 |
| ES16T12T | 2" | 1-1/2" | 40 | 33 | 64 | 63.5 |
