Hex Adapter
Pipe Fittings
Male Reducer with Hexagonal Female Thread, Reduction with Male and Female Thread
Pipe Fittings Hex Adapters are widely used in liquid and gas piping, house installation, equipment assembly in various industries. Our hexagon is suitable for drinking water, sprinkler systems, rainwater utilization equipment, water glycol mixtures as well as numerous industrial applications. In the building services, our hex adapter is used in the construction of pipes, radiators, sanitary facilities, drain pipes, water tanks and waste water pumps, as well as a spare part.
Hex Adapter is made from stainless steel bar stock. Hexagonal head is with threaded male to female thread.
Full series includes straight, elbow, tee, barbed hose, bulkhead, reducer pipe fittings. Other fitting threads can be customized.
Features
- Leak Free Design.
- Fast and Easy Installation.
- Space-saving.
- Material: SUS304, SUS316, Corrosive resistance
Technical Data
- Working Pressure: 210 kgf/cm²
- Size: 1/8" ~ 2"
- Thread: PT, NPT

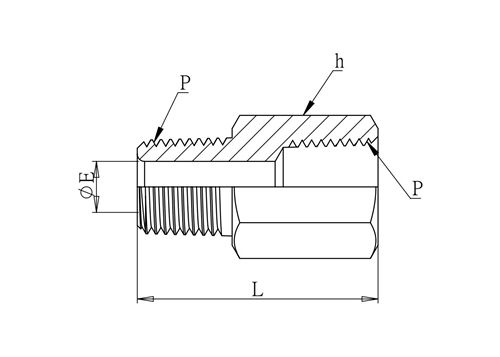

Dimension
Specification
Pipe Fittings Hex Adapter
| Part No | THREAD SIZE | Dimensions | H | ||
|---|---|---|---|---|---|
| P-PT | P1-PT | Ø E | L | ||
| ES01T01R | 1/8" | 4.8 | 26 | 14 | |
| ES02T02R | 1/4" | 7 | 33 | 17 | |
| ES03T03R | 3/8" | 9.6 | 35 | 21 | |
| ES04T04R | 1/2" | 12 | 41 | 27 | |
| ES06T06R | 3/4" | 16 | 46 | 32 | |
| ES08T08R | 1" | 22 | 50 | 41 | |
| ES01T02R | 1/8" | 1/4" | 4.8 | 30 | 17 |
| ES01T04R | 1/8" | 1/2" | 4.8 | 33 | 27 |
| ES02T03R | 1/4" | 3/8" | 7 | 34 | 21 |
| ES02T04R | 1/4" | 1/2" | 7 | 37 | 27 |
| ES03T04R | 3/8" | 1/2" | 9.6 | 38 | 27 |
| ES04T06R | 1/2" | 3/4" | 12 | 45 | 32 |
| ES04T08R | 1/2" | 1" | 12 | 48 | 41 |
| ES06T08R | 3/4" | 1" | 16 | 48 | 41 |
