316 Stainless Steel Tube Fittings Male Connector
Tube Fittings
316L stainless steel (inox 316) two ferrules tube fittings male connector, 316 stainless steel(inox 316) double ferrules compression tube fitting male connector, 316 stainless steel(inox 316) ferrules straight male connector, 316 stainless steel(inox 316) compression fitting PT / NPT / RC / R / BSPT male x metal tubing, connect fractional tubing to PT / NPT / RC / R / BSPT male thread, connect metric tubing to PT / NPT / RC / R / BSPT male thread , connect metric tubing to fractional PT / NPT / RC / R / BSPT male thread, connect fractional tube to PT / NPT / RC / R / BSPT male thread, SS316 tube fittings straight male connector
316 stainless steel tube fittings male connectors are widely used in instrumentation, liquid and gas tubing. They are suitable for food and beverage, and medical equipment subject to special treatment.
Tube fitting male connectors present straight shape. One end is male thread and another is used for tube connection. The suitable tube OD for male connector is between 3 to 25 mm and 1/8 to 1 inch.
All parts of tube fittings are made of 316 stainless steel, constructed by body, back and front ferrules, and nut. provides various configurations of tube fittings for selection, including straight male connector, 90-degree elbows, tees, bulkheads, nuts, ferrules, plugs, and caps. Nut threads are electroplated to prevent wear and improve smoothness for easier installation.
Features
- Double-ferrule metal to metal sealing, leak-free design.
- Nut threads are electroplated to reach wear resistance.
- 316 stainless steel material features resistance to heat, impact, and corrosion.
Technical Data
Working Pressure:
(1) 1/2 inch (12mm) Below: 210 kgf/cm²
(2) 3/4 inch (19mm) Above: 100 kgf/cm²
Suitable Tube O.D.: 1/8 ~ 1 inch ; 3 ~ 20mm
Thread: PT, NPT, M
Customized size is also acceptable.
Application
- Suitable for Instruments, Meters, Piping Engineering, Low Pressure and High Temperature Pneumatic Pipelines, Medical Equipment, Agricultural Appliances, Mechanical Parts Assembly, Food Industry, Chemical Plant, Petrochemical Plant, Water Treatment Industry.

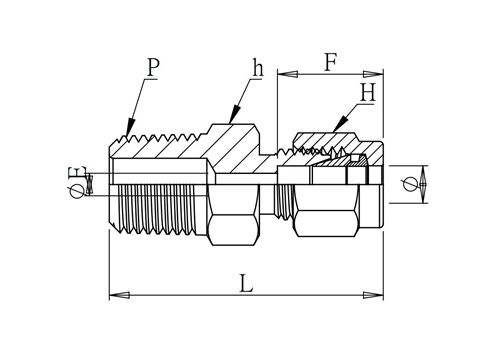

Dimension
Specification
Tube Fittings Male Connector
| PART NO | TUBE OD | THREAD SIZE | DIMENSIONS | H | h | ||
|---|---|---|---|---|---|---|---|
| Ø | P-PT | Ø E | F | L | |||
| ES01OD01T | 1/8" | 1/8" | 2.4 | 13.2 | 31 | 12 | 12 |
| ES01OD02T | 1/4" | 35.5 | 14 | ||||
| ES015OD01T | 3/16" | 1/8" | 3 | 14.1 | 32 | 12 | 12 |
| ES015OD02T | 1/4" | 36.5 | 14 | ||||
| ES02OD01T | 1/4" | 1/8" | 4.8 | 15.5 | 34 | 14 | 14 |
| ES02OD02T | 1/4" | 37.8 | |||||
| ES02OD03T | 3/8" | 38.8 | 17 | ||||
| ES02OD04T | 1/2" | 43.8 | 22 | ||||
| ES03OD01T | 3/8" | 1/8" | 4.8 | 17.2 | 36 | 17 | 16 |
| ES03OD02T | 1/4" | 7 | 39 | ||||
| ES03OD03T | 3/8" | 40 | 17 | ||||
| ES03OD04T | 1/2" | 45 | 22 | ||||
| ES04OD01T | 1/2" | 1/8" | 4.8 | 23 | 39.5 | 22 | 21 |
| ES04OD02T | 1/4" | 7 | 42.5 | ||||
| ES04OD03T | 3/8" | 9.7 | 43.5 | ||||
| ES04OD04T | 1/2" | 10.5 | 48.5 | 22 | |||
| ES04OD06T | 3/4" | 51.5 | 27 | ||||
| ES05OD04T | 5/8" | 1/2" | 12 | 24.9 | 49.1 | 27 | 24 |
| ES05OD06T | 3/4" | 12.7 | 52.1 | 27 | |||
| ES06OD04T | 3/4" | 1/2" | 12 | 24.6 | 49.8 | 28.6 | 27 |
| ES06OD06T | 3/4" | 51.8 | |||||
| ES06OD08T | 1" | 56.8 | 35 | ||||
| ES08OD04T | 1" | 1/2" | 12 | 30.8 | 53.8 | 38 | 35 |
| ES08OD06T | 3/4" | 16 | 56.3 | ||||
| ES08OD08T | 1" | 22 | 58.3 | ||||
