Pipe Fittings Reducing Male Elbows provide a solution for the different diameter of outlets in pipe systems, gas, liquid, and air piping. It also allows the fluid to change the flow direction to 90-degree.
Male Elbow is made from stainless steel forgings.
Elbow presents 90-degree with male thread at two ends.
Full series includes straight, elbow, tee, barbed hose, bulkhead, reducer pipe fittings. Other fitting threads can be customized.
Features
- Leak Free Design.
- Fast and Easy Installation.
- Space-saving.
- Material: SUS304, SUS316, Corrosive resistance
Technical Data
- Working Pressure: 210 kgf/cm²
- Size: 1/8" ~ 2"
- Thread: PT, NPT

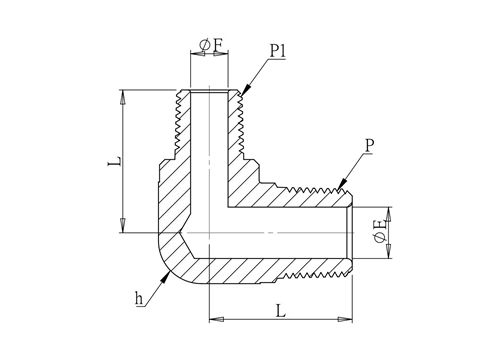

Dimension
Specification
Pipe Fittings Male Elbow
| Part No | THREAD SIZE | Dimensions | H | |||
|---|---|---|---|---|---|---|
| P-PT | P1-PT | Ø E | Ø F | L | ||
| EL02T01T | 1/4" | 1/8" | 4.8 | 7 | 24.3 | 14.5 |
| EL03T02T | 3/8" | 1/4" | 7 | 9.6 | 26.7 | 18.6 |
| EL04T02T | 1/2" | 1/4" | 7 | 12 | 31.7 | 22.7 |
| EL04T03T | 1/2" | 3/8" | 9.6 | 12 | 31.7 | 22.7 |
| EL06T03T | 3/4" | 3/8" | 9.6 | 16 | 36.5 | 27.5 |
| EL06T04T | 3/4" | 1/2" | 12 | 16 | 36.5 | 27.5 |
| EL08T04T | 1" | 1/2" | 12 | 22 | 42.5 | 34 |
| EL08T06T | 1" | 3/4" | 16 | 22 | 42.5 | 34 |
