Street Elbow
Pipe Fittings
Male to Female Thread Elbow, Male Female Threaded Elbow, Male to Female Thread Ell
Pipe Fittings Street Elbows are widely used to connect outlets in water supply, gas, liquid and sewage systems. It also allows the fluid to change the flow direction to 90-degree. Street Elbow is made from stainless steel forgings. Stainless steel features rust resistance, corrosive resistance, and temperature resistance. Male to female thread elbow presents 90-degree shape.
Full series includes straight, elbow, tee, barbed hose, bulkhead, reducer pipe fittings. Other fitting threads can be customized.
Features
- Leak Free Design.
- Fast and Easy Installation.
- Space-saving.
- Material: SUS304, SUS316, Corrosive resistance
Technical Data
- Working Pressure: 210 kgf/cm²
- Size: 1/8" ~ 2"
- Thread: PT, NPT

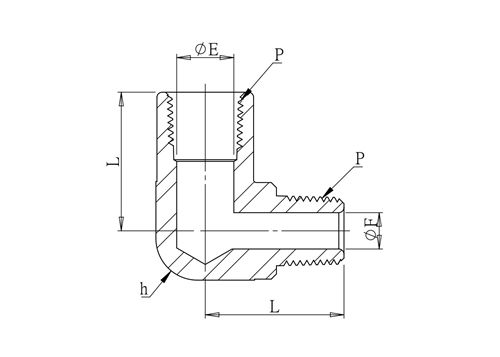

Dimension
Specification
Pipe Fittings Male Elbow
| Part No | THREAD SIZE | Dimensions | H | ||
|---|---|---|---|---|---|
| P-PT | Ø E | Ø F | L | ||
| EL01T01R | 1/8" | 8 | 4.8 | 24.3 | 14.5 |
| EL02T02R | 1/4" | 11 | 7 | 31.7 | 22.7 |
| EL03T03R | 3/8" | 14 | 9.6 | 31.7 | 22.7 |
| EL04T04R | 1/2" | 17 | 12 | 36.5 | 27.5 |
| EL06T06R | 3/4" | 22 | 16 | 42.5 | 34 |
