Hollow Hex Plug
Pipe Fittings
Blanking Hex Plug
Pipe Fittings Hollow Hex Plugs are designed to stop the fluid flow in pipes or tubes. They are suitable used with air, hydraulic fluid, natural gas, oil, steam, and water. Hollow Hex Plug is hollow hexagon designed for tool use of solid hex wrench. Male thread selection can be PT or NPT or G thread in order to screw with female.
A full series includes straights, elbows, tees, barbed hoses connectors, bulkhead, reducer pipe fittings. Other fitting threads can be customized.
Features
- Leak Free Design.
- Fast and Easy Installation.
- Space-saving.
- Material: SUS304, SUS316, Corrosive resistance
Technical Data
- Working Pressure: 210 kgf/cm²
- Size: 1/8" ~ 2"
- Thread: PT, NPT

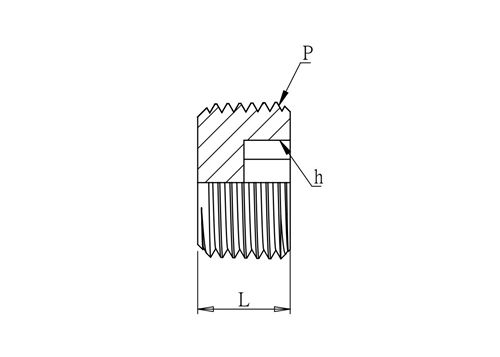

Dimension
Specification
HHP Pipe Fittings Hollow Hex Plug
| Part No | THREAD SIZE | Dimensions | H |
|---|---|---|---|
| P-PT | L | ||
| EPTH01 | 1/8" | 7 | 5 |
| EPTH02 | 1/4" | 9 | 6 |
| EPTH03 | 3/8" | 10 | 8 |
| EPTH04 | 1/2" | 12 | 10 |
| EPTH06 | 3/4" | 14 | 12 |
| EPTH08 | 1" | 18 | 17 |
