VCR Male Nut

VCR fittings

VCR Male Nut
The VCR metal gasket face seal allows for a sealed connection while maintaining the high purity of a metal-to-metal seal.
The gaskets, nuts and welding rods are used to lock the VCR joint ends and then the welding rods are welded to other joints, valves or steel pipes.

Features

  • Material: SUS316

Technical Data

  • Size: 1/16"～1"
  • Thread: VCR

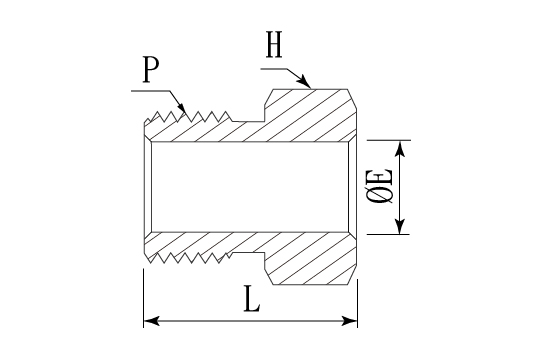

Dimension



Specification​
VCR Male Nut

Part No THREAD SIZE Dimensions H
P L ØE
ENV01M 1/8" 12.7 5.3 3/8"
ENV02M 1/4" 18 9.1 5/8"
ENV04M 1/2" 20.6 15.5 15/16"
ENV05M 5/8" 20.6 18.8 1 - 1/16"
ENV06M 3/4" 25.4 22.6 1 - 5/16"
ENV08M 1" 30.2 30.5 1 - 5/8"
