VCR Female Cap
VCR fittings
VCR Female Cap
The VCR metal gasket face seal allows for a sealed connection while maintaining the high purity of a metal-to-metal seal.
The gaskets, nuts and welding rods are used to lock the VCR joint ends and then the welding rods are welded to other joints, valves or steel pipes.
Features
- Material: SUS316
Technical Data
- Size: 1/8"～1"
- Thread: VCR

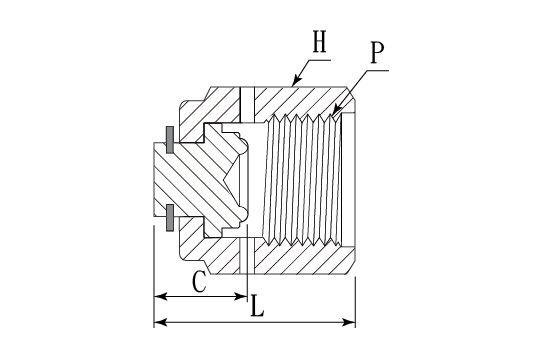

Dimension
Specification
VCR Female Cap
| Part No | THREAD SIZE | Dimensions | H |
|---|---|---|---|
| P | L | ||
| ECV01 | 1/8" | 16 | 7/16" |
| ECV02 | 1/4" | 23.9 | 3/4" |
| ECV04 | 1/2" | 25.6 | 1 - 1/16" |
| ECV06 | 3/4" | 32.8 | 1 - 1/2" |
| ECV08 | 1" | 39.1 | 1 - 3/4" |
