VCR Long Gland
VCR fittings
VCR Long Gland
The VCR metal gasket face seal allows for a sealed connection while maintaining the high purity of a metal-to-metal seal.
The gaskets, nuts and welding rods are used to lock the VCR joint ends and then the welding rods are welded to other joints, valves or steel pipes.
Features
- Material: SUS316
Technical Data
- Size: 1/16"～1"
- Thread: VCR、PT、NPT

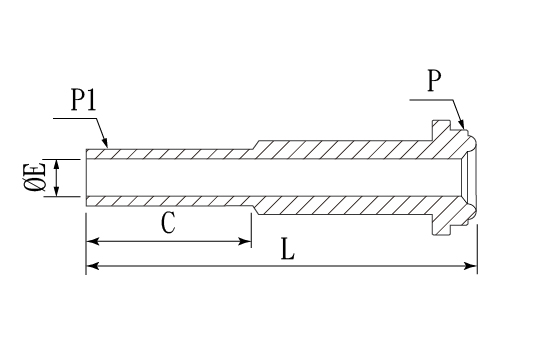

Dimension
Specification
VCR Long Gland
| Part No | THREAD SIZE | Dimensions | |||
|---|---|---|---|---|---|
| P | P1 | L | Ø E | C | |
| EGL01M01OD36 | 1/8" | 1/8" | 36 | 2.48 | 9.6 |
| EGL02M01OD34 | 1/4" | 1/8" | 34.13 | 2.48 | 10 |
| EGL02M02OD30 | 1/4" | 30.48 | 5.35 | 6.35 | |
| EGL02M02OD34 | 34.13 | 5.35 | 10 | ||
| EGL02M02OD43 | 43.18 | 5.35 | 19.05 | ||
| EGL04M02OD32 | 1/2" | 1/4" | 32.77 | 5.35 | 6.35 |
| EGL04M02OD36 | 36.42 | 5.35 | 10 | ||
| EGL04M02OD45 | 45.47 | 5.35 | 19.05 | ||
| EGL04M03OD32 | 3/8" | 32.77 | 8.53 | 6.35 | |
| EGL04M03OD36 | 36.42 | 8.53 | 10 | ||
| EGL04M03OD45 | 45.47 | 8.53 | 19.05 | ||
| EGL04M04OD32 | 1/2" | 32.77 | 11.46 | 6.35 | |
| EGL04M04OD36 | 36.42 | 11.46 | 10 | ||
| EGL04M04OD45 | 45.47 | 11.46 | 19.05 | ||
| EGL06M06OD51 | 3/4" | 3/4" | 51.56 | 17.4 | 19.05 |
| EGL08M08OD58 | 1" | 1" | 58.93 | 23.75 | 19.05 |
