Hex Reducing Bush
Pipe Fittings
Hex Bushing Reducer, Hex Head Bushing Reducing
Pipe Fittings Hex Reducing Bushes are widely used to connect a small conduit to a big one in liquid, air, natural gas, and steam tubing. Hex Reducing Bush has hex head of female thread and straight pipe male. It is suitable for the connection of rigid pipe. It is made from stainless steel bar stock.
Full series includes straight, elbow, tee, barbed hose, bulkhead, reducer pipe fittings. Other fitting threads can be customized.
Features
- Leak Free Design.
- Fast and Easy Installation.
- Space-saving.
- Material: SUS304, SUS316, Corrosive resistance
Technical Data
- Working Pressure: 210 kgf/cm²
- Size: 1/8" ~ 2"
- Thread: PT, NPT, PF

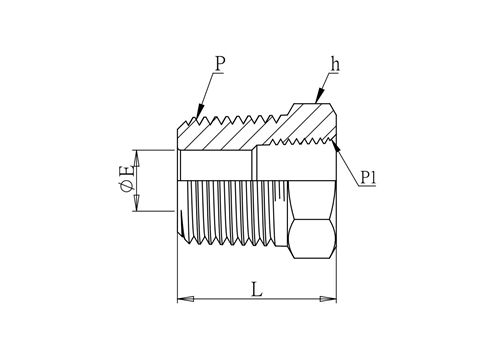

Dimension
.jpg)
Specification
Pipe Fittings Hex Reducing Bush
| Part No | THREAD SIZE | Dimensions | H | ||
|---|---|---|---|---|---|
| P-PT | P1-PT | Ø E | L | ||
| EBU02T01R | 1/4" | 1/8" | 7.5 | 20 | 14 |
| EBU03T01R | 3/8" | 1/8" | 7.5 | 21 | 17 |
| EBU03T02R | 3/8" | 1/4" | 10 | 21 | 17 |
| EBU04T01R | 1/2" | 1/8" | 7.5 | 26 | 22 |
| EBU04T02R | 1/2" | 1/4" | 10 | 26 | 22 |
| EBU04T03R | 1/2" | 3/8" | 14 | 26 | 22 |
| EBU06T02R | 3/4" | 1/4" | 10 | 29 | 27 |
| EBU06T03R | 3/4" | 3/8" | 14 | 29 | 27 |
| EBU06T04R | 3/4" | 1/2" | 17 | 29 | 27 |
| EBU08T03R | 1" | 3/8" | 14 | 32 | 35 |
| EBU08T04R | 1" | 1/2" | 17 | 32 | 35 |
| EBU08T06R | 1" | 3/4" | 21 | 32 | 35 |
| EBU10T04R | 1-1/4" | 1/2" | 17 | 35 | 46 |
| EBU10T06R | 1-1/4" | 3/4" | 21 | 35 | 46 |
| EBU10T08R | 1-1/4" | 1" | 28 | 35 | 46 |
| EBU12T4R | 1-1/2" | 1/2" | 17 | 37 | 50 |
| EBU12T06R | 1-1/2" | 3/4" | 21 | 37 | 50 |
| EBU12T08R | 1-1/2" | 1" | 28 | 37 | 50 |
| EBU12T10R | 1-1/2" | 1-1/4" | 33 | 37 | 50 |
| EBU16T08R | 2" | 1" | 28 | 39 | 63.5 |
| EBU16T12R | 2" | 1-1/2" | 43 | 39 | 63.5 |
